Details

Add Heat effect to your Sprite Renderer and Unity UI Canvas Image.

Add it to the Sprite Renderer or Unity UI Canvas Image GameObject via the Components menu2DxFX > Standard > Heat

4 Gradients is available in Advanced Lightning Mode. Via the Components menu2DxFX > Advanced Lightning > Heat

Note : Advanced Lightning is not working with the Unity UI Canvas (UI Canvas don't use lightning)

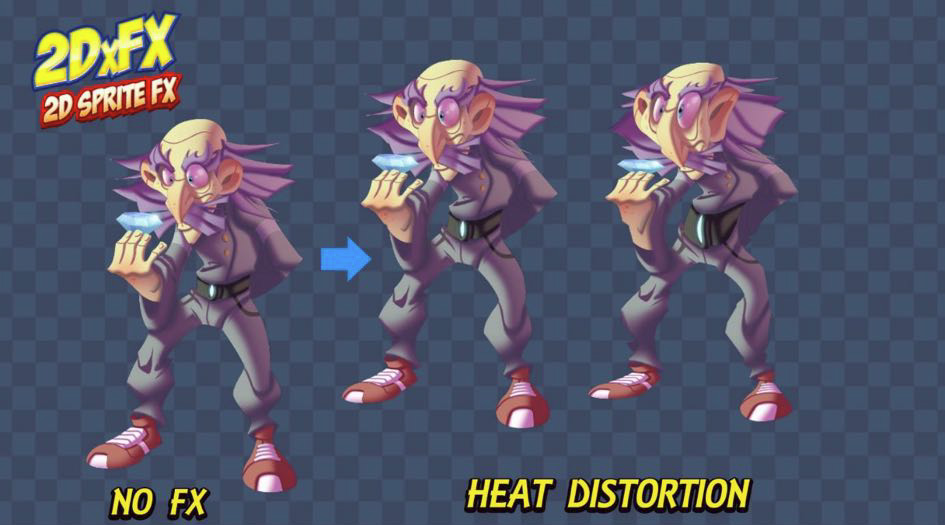

*without and with 2DxFX Heat


Property

Range

Default

_Alpha 0 to 1 1f
Heat 0.0f to 4f 1.0f
Speed 0.0f to 4f 1.0f

Manipulate Heat by script

Example:

// Drag and Drop your Sprite GameObject
// with the Heat component
// to your current script on the FX_Standard_Heat field

public _2dxFX_Heat_Editor FX_Heat;

void Update()
{
	FX_Heat._Alpha =  1f;
}
